What is a Stacking Crane System？

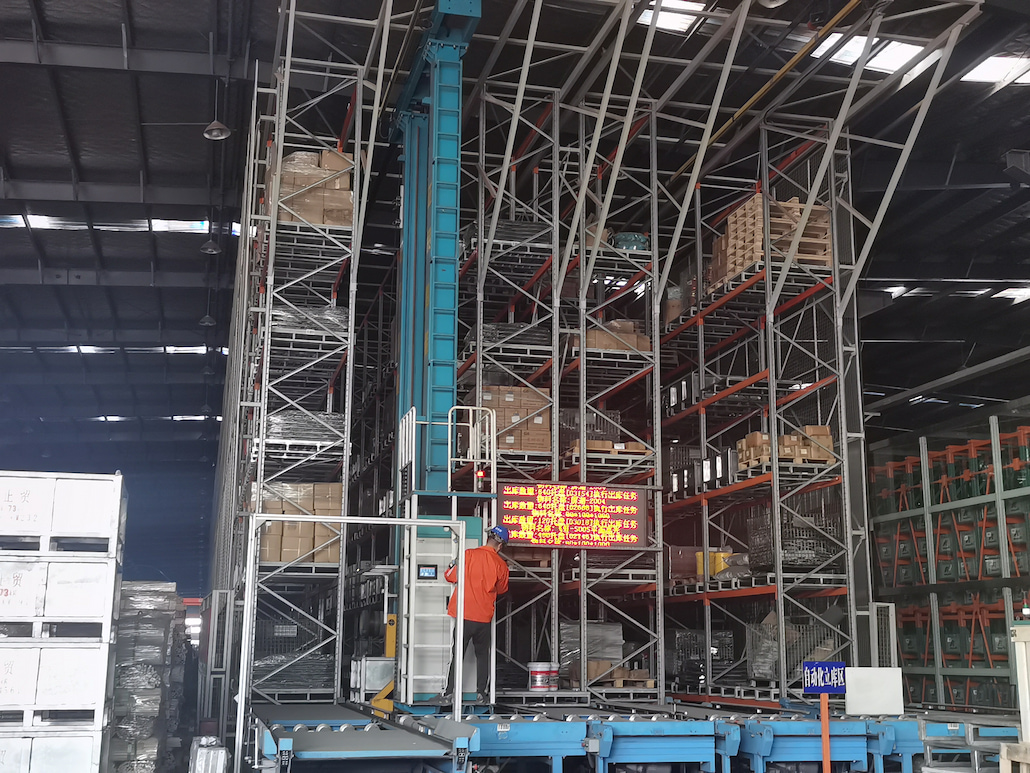

A Stacking Crane System, also known as a Stacking Crane Automated Storage and Retrieval (AS/RS), is a type of material handling solution used for efficiently storing and retrieving goods in automated warehouses or distribution centers. It consists of several key components:

Rack Structure: The rack structure forms the skeleton of the system and provides support for the storage and retrieval operations. It typically consists of multiple levels of racking, often reaching heights of several stories, designed to optimize vertical space utilization.

Stacking Cranes: The stacking cranes are the core elements of the system. These automated robotic cranes travel along the aisles of the rack structure, horizontally and vertically, to access and move the stored goods. They are equipped with mechanisms such as telescopic forks, grippers, or suction devices to pick up and deposit goods on the racks.

Control System: The control system manages the overall operation of the AS/RS. It coordinates the movement of the stacking cranes, tracks inventory levels, and optimizes the storage and retrieval processes. The control system may integrate with warehouse management software to facilitate real-time monitoring, inventory tracking, and order management.

Conveyor Systems: Conveyor systems are often employed in AS/RS installations to transport goods to and from the stacking cranes. These conveyors facilitate the movement of goods between the entrance and exit points of the system and the cranes' pickup and drop-off locations.

Input/Output Stations: Input and output stations serve as the interfaces between the AS/RS and the external environment. At the input station, goods are typically received, inspected, and labeled before being placed into the system. The output station is responsible for packaging, sorting, and preparing goods for shipping or further processing.

Sensors and Safety Devices: AS/RS installations incorporate various sensors and safety devices to ensure efficient and safe operation. These may include proximity sensors to detect obstacles or ensure accurate positioning, safety scanners to prevent collisions, and emergency stop mechanisms to halt operations in case of any hazards or malfunctions.

Collectively, these components work together to automate the storage and retrieval operations, increase storage capacity, enhance inventory accuracy, and improve overall operational efficiency in warehouses and distribution centers.
