Warehouse Radio Shuttle System - Semi-automatic system

A warehouse shuttle rack system is an automated storage and retrieval system (ASRS) that utilizes specialized shuttle vehicles to efficiently handle and store goods within a warehouse. This system maximizes space utilization and streamlines order fulfillment processes. Here is a detailed description of a warehouse shuttle rack system:

Structure and Components:

The warehouse shuttle rack system comprises the following components:

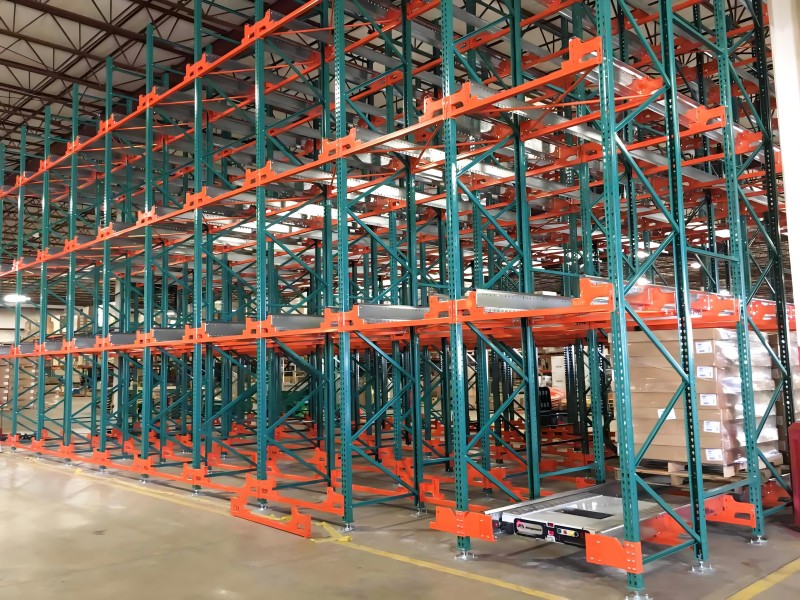

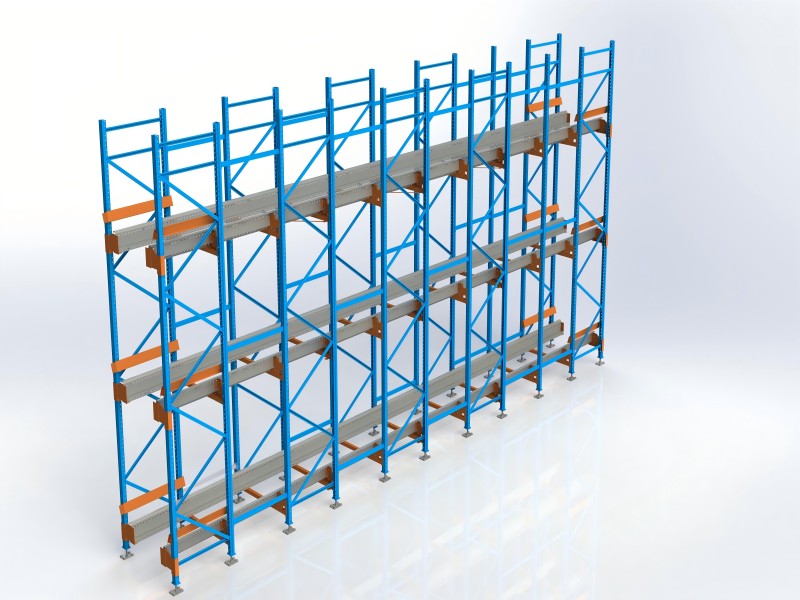

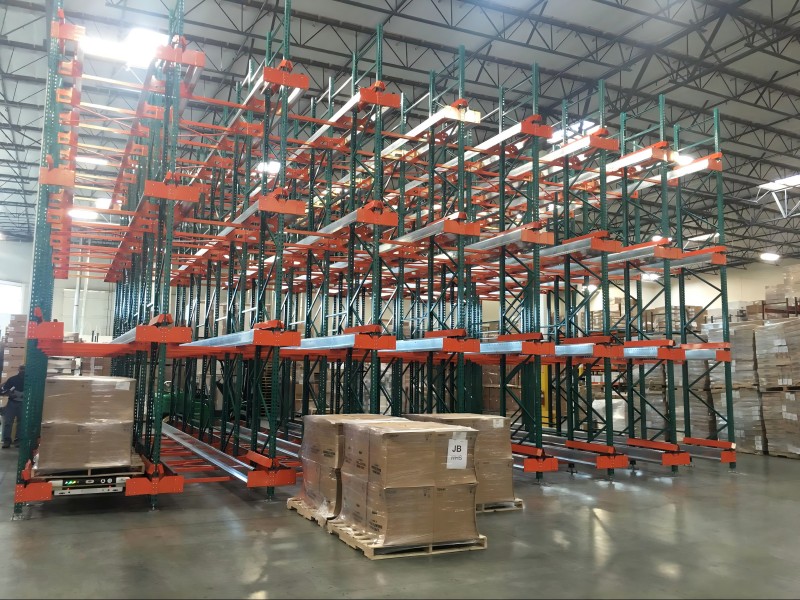

• Rack Structure: The warehouse is equipped with a series of racks that are divided into multiple levels. These racks are designed to store pallets or containers and are arranged in aisles.

• Shuttle Vehicles: The shuttle vehicles are small, robotic units that operate within the rack structure. They are responsible for transporting goods to and from the storage locations. These vehicles are equipped with sensors, an onboard control system, and lifting mechanisms to handle the pallets or containers.

• Control System and Software: The control system and software manage the operation of the shuttle rack system. It controls the movement of the shuttle vehicles, tracks inventory, and optimizes storage and retrieval processes. The software interfaces with the warehouse management system (WMS) to manage inventory and generate picking orders.

• Loading and Unloading Stations: Loading and unloading stations are strategically placed at the ends of the aisles. These stations allow for the efficient transfer of goods between the shuttle vehicles and the storage locations.

How It Works:

The warehouse shuttle rack system operates in the following manner:

• Goods Placement: Initially, pallets or containers of goods are placed on the racks at designated storage locations. Each item is assigned a unique identifier within the warehouse management system.

• Retrieval Request: When a picking request is received, the control system identifies the location of the requested item.

• Shuttle Vehicle Navigation: A shuttle vehicle is assigned to retrieve the requested item. The control system guides the shuttle vehicle to the appropriate aisle and level using predefined paths and positioning technology.

• Loading and Unloading: Once the shuttle vehicle reaches the correct location, it uses its lifting mechanism to raise or lower the pallet or container. The vehicle then moves the item horizontally to the designated loading or unloading station.

• Transfer of Goods: At the loading/unloading station, the pallet or container is transferred to a conveyor system or manually unloaded by warehouse personnel. In the case of storage, a new pallet or container is loaded onto the shuttle vehicle for storage.

• Return to Base: After completing the task, the shuttle vehicle returns to its designated base station to await the next assignment.

Advantages:

The warehouse shuttle rack system offers several advantages:

• Space Optimization: The system maximizes vertical space utilization by storing goods in multiple levels of racks, enabling efficient use of warehouse capacity.

• High Throughput: The automated operation and simultaneous movement of multiple shuttle vehicles allow for fast and efficient order fulfillment, increasing the overall throughput of the warehouse.

• Flexibility and Adaptability: The system can handle a wide range of pallet sizes, configurations, and product types, making it adaptable to various warehouse storage needs.

• Accuracy and Precision: The use of advanced control systems and positioning technology ensures accurate placement and retrieval of goods, minimizing errors and reducing the risk of damage.

• Integration with WMS: The control software seamlessly integrates with the warehouse management system, providing real-time inventory control, order management, and optimization of storage allocation.

In summary, a warehouse shuttle rack system is an automated solution that optimizes space utilization and improves warehouse efficiency. Through the use of shuttle vehicles, it enables fast and accurate storage and retrieval of goods, streamlines order fulfillment processes, and enhances overall performance.
