 Unmanned intelligent transportation system Autonomous Mobile Robots —Lurking AGV
Unmanned intelligent transportation system Autonomous Mobile Robots —Lurking AGV -Kingmore
Unmanned intelligent transportation system Autonomous Mobile Robots —Lurking AGV -Kingmore
Unmanned intelligent transportation system Autonomous Mobile Robots —Lurking AGV -Kingmore
Unmanned intelligent transportation system Autonomous Mobile Robots —Lurking AGV -Kingmore

Unmanned intelligent transportation system Autonomous Mobile Robots —Lurking AGV

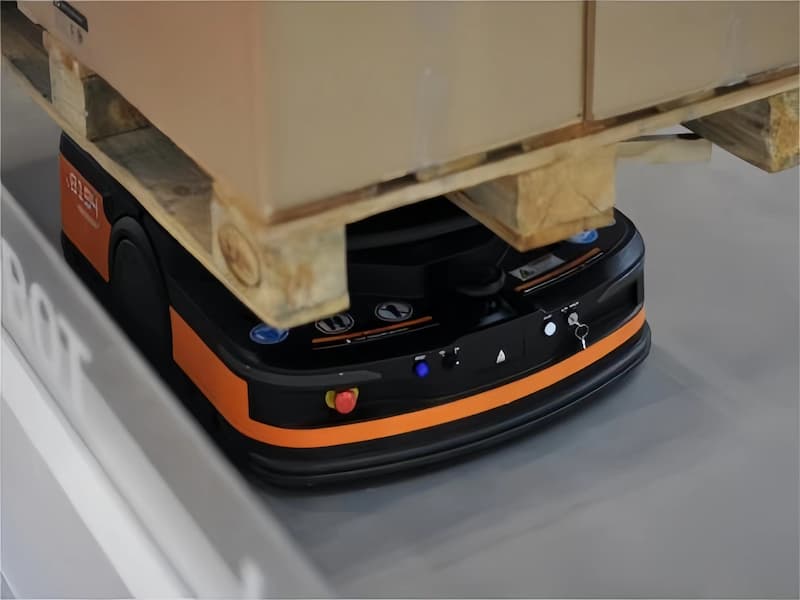

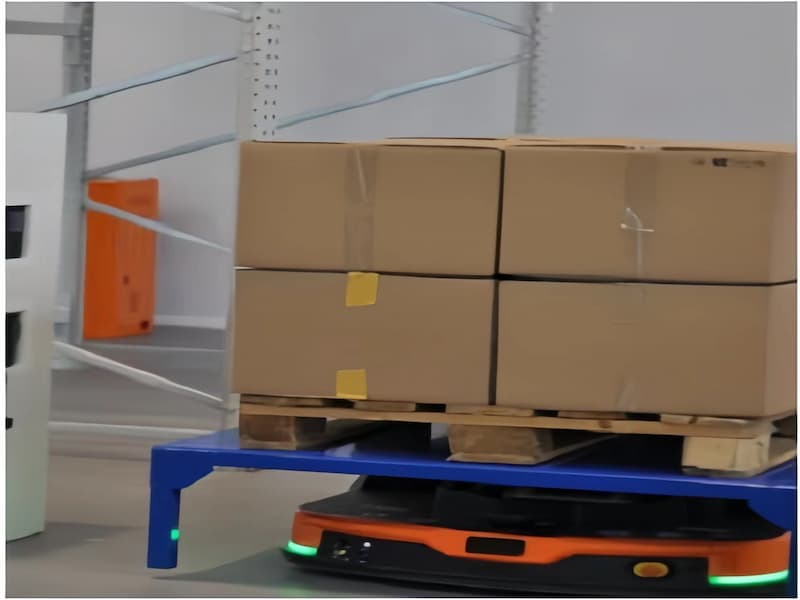

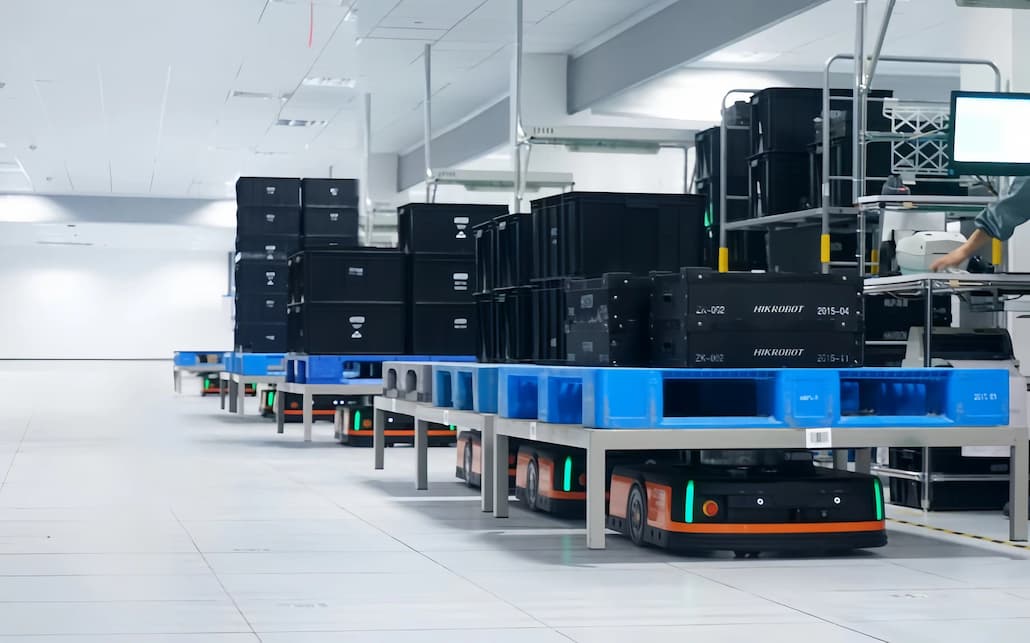

The Latent Mobile robot series moves inventory shelves or pallets to the picking station by its lifting mechanism. It has optimized motion performance and enhanced safety protection, delivering highly productive and cost-effective goods-to-person solutions.

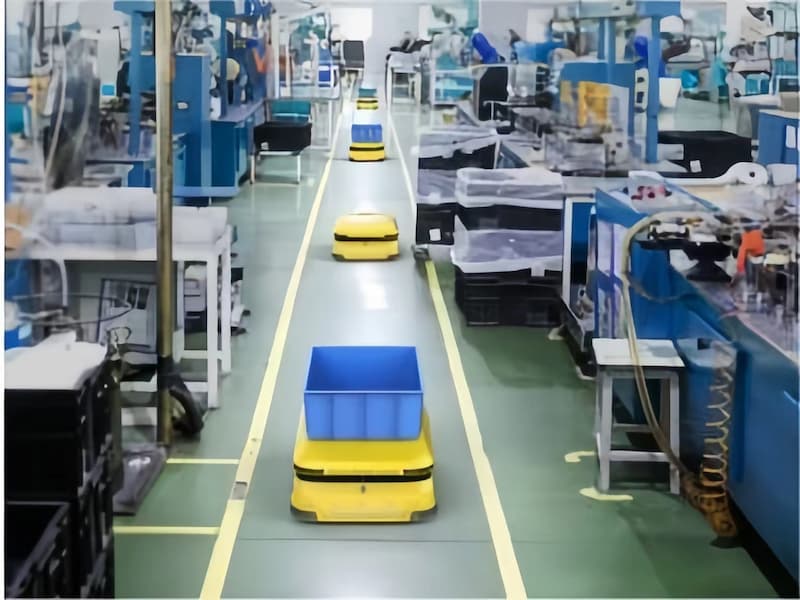

For the turnover in the warehouse or the connection between the production line and the warehouse, the flexible handling AGV is selected to replace the traditional forklift and other handling tools according to the flow demand. Kingmore smart forms information interaction between the handling system, warehouse and production line, which can ensure the traceability of information in the whole link, create intelligent flexible production and reduce the demand for manual use.

Inquire Now
Product categories
New Products



Our lurking type AGV adopts magnetic navigation to achieve automatic forward and reverse of AGV. Various safety protection measures include infrared obstacle avoidance, mechanical anti-collision design, and emergency stop button to prevent collision between multi-AGV, AGV and external enviroment.





Product Parameters


Model Q2-400D Q3-1000E Q7-1000E
Basic Parameters Navigation QR code/VSLAM/LSLAM QR code/VSLAM/LSLAM QR code/VSLAM/LSLAM
Dimensions L*W*H(mm) 780*545*300 950*650*250 1150*820*256
Rotation Diameter(mm) 820 995 1200
Lifting Height(mm) 60 60 60
Chassis Ground Distance(mm) 30 25 25
Lift Table Size(mm) 724*504 850*600 1030*770
Weight(Kg) 93 132 185
Specified Load(Kg) 400 600 1000
Sports Performance Rated Operating Speed (No Load)(mm/s) 2000 2000 2000
Rated Acceleration (No Load)(mm/s2) 1000 1200 1000
*Positioning Accuracy(mm)(°) ±10/±1 ±10/±1 ±10/±1
Battery Performance Working Time Under Rated Working Conditions (h) 8 8 8
Charging Time After Complete Discharge (h) ≤1.5 ≤1.5 ≤1.5




Model Q7S-1000E Q7-1500D Q8-2000A
Basic Parameters Navigation QR code/VSLAM QR code/VSLAM/LSLAM QR code/VSLAM/LSLAM
Dimensions L*W*H(mm) 1150*820*200 1180*860*265 1523*1153*327
Rotation Diameter(mm) 1200 1265 1794
Lifting Height(mm) 60 60 100
Chassis Ground Distance(mm) 20 25 25
Lift Table Size(mm) Φ750 980*800 1450*1050
Weight(Kg) 155 277 500
Specified Load(Kg) 1000 1500 2000
Sports Performance Rated Operating Speed (No Load)(mm/s) 2000 1400 1000
Rated Acceleration (No Load)(mm/s2) 1000 600 400
*Positioning Accuracy(mm)(°) ±10/±1 ±10/±1 ±10/±1
Battery Performance Working Time Under Rated Working Conditions (h) 8 8 8
Charging Time After Complete Discharge (h) ≤1.5 ≤1.5 ≤1.5



FEATURES OF Forklift AGV

  • Reduce the intensity of manual work and achieve unmanned handling;
  • Can quickly search for  goods and realize digital operation and management of warehousing information;
  • Increase work efficiency;
  • Improve site utilization.



Applications

  • Traditional manufacturing,
  • 3C manufacturing,
  • automobile manufacturing,
  • e-commerce supermarkets,
  • medicine, shoes and clothing,
  • food,
  • tobacco,
  • express logistics,etc
