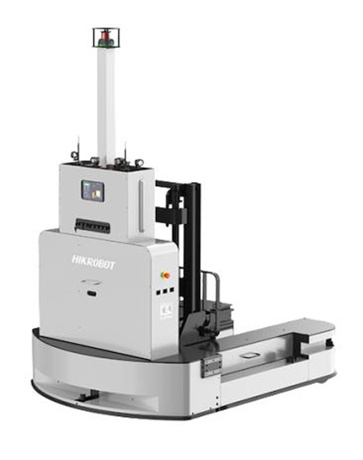

High Stability Smart Adaptive AGV Forklifts

High Stability Automated Guided Vehicles

High Stability Smart Adaptive Forklift AGV

High Stability Smart Adaptive AGV Forklifts

Features: High stability, adaptive, smart and efficient

Inquire Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Cold Storage - AS/RS
Read More

Product Details

1. Omnidirectional series

The omnidirectional series of forklift robots is a unique product form in the industry, with payloads ranging from 300kg to 1400kg. By designing different steering wheels to be nested in the vehicle body, it can realize omnidirectional movement functions of different sizes of vehicle bodies, occupying a small passage space and allowing flexible line planning. Supports any movement in diagonal, arc, and lateral directions, solving customers' pain points of high storage capacity and narrow channel planning, covering 3C, new energy, auto parts, tobacco and other industries.

1.F1-300T	Specified load(kg)	300
	Maximum lifting height(mm)	438
	Minimum channel width(m)	1.4
	Lifting speed (full load/empty load)(mm/s)	50/50
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Driving in all directions
	DimensionsLWH(mm)	10937451932
	Rated operating speed(m/s)	1.0
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤1.5
	Rated operating time(h)	6~8

2.F1-500T	Specified load(kg)	500
	Maximum lifting height(mm)	510
	Minimum channel width(m)	1.8
	Lifting speed (full load/empty load)(mm/s)	50/50
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Driving in all directions
	DimensionsLWH(mm)	12578001545
	Rated operating speed(m/s)	1.0
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤1.5
	Rated operating time(h)	6~8

3.F1-600U	Specified load(kg)	600
	Maximum lifting height(mm)	1344
	Minimum channel width(m)	1.9
	Lifting speed (full load/empty load)(mm/s)	100/135
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Driving in all directions
	DimensionsLWH(mm)	16569901984
	Rated operating speed(m/s)	1.2
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤1.5
	Rated operating time(h)	6~8

4.F1-1000U	Specified load(kg)	1000
	Maximum lifting height(mm)	2049
	Minimum channel width(m)	1.9
	Lifting speed (full load/empty load)(mm/s)	100/135
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Driving in all directions
	DimensionsLWH(mm)	16569901984
	Rated operating speed(m/s)	1.2
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤2
	Rated operating time(h)	6~8

5.F5-1400U	Specified load(kg)	1500
	Maximum lifting height(mm)	3070
	Minimum channel width(m)	3.2
	Lifting speed (full load/empty load)(mm/s)	95/105
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Driving in all directions
	DimensionsLWH(mm)	275817002901.5
	Rated operating speed(m/s)	1.2
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤3
	Rated operating time(h)	6~8

2. Stacking height series

The push-up series of forklift robots cover the load range requirements from 1000kg to 3000kg, and can achieve customized lifting heights of up to 4.5 meters. The thickness of the car body is specially designed for the robot, which greatly reduces the width of the running channel and effectively improves material storage. space. The family-like front face design and modular component commonality rate can reach 80% in different scenarios. The entire series has obtained CE certification for all directives and is the first choice product series for logistics solutions.

6.F4-1000C	Specified load(kg)	1000
	Maximum lifting height(mm)	2031/1331
	Minimum channel width(m)	2.1
	Lifting speed (full load/empty load)(mm/s)	100/135
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Forward, backward, arc, rotation
	DimensionsLWH(mm)	16929901983
	Rated operating speed(m/s)	1.2
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤2
	Rated operating time(h)	6~8

7.F4-1500B	Specified load(kg)	1500
	Maximum lifting height(mm)	3000
	Minimum channel width(m)	2.5
	Lifting speed (full load/empty load)(mm/s)	80/120
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Forward, backward, arc, rotation
	DimensionsLWH(mm)	18839402165
	Rated operating speed(m/s)	1.2
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤2
	Rated operating time(h)	6~8

8.F4-2000B	Specified load(kg)	2000
	Maximum lifting height(mm)	3017/4517
	Minimum channel width(m)	2.1
	Lifting speed (full load/empty load)(mm/s)	110/140
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Forward, backward, arc, rotation
	DimensionsLWH(mm)	191410092219
	Rated operating speed(m/s)	1.2
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤2
	Rated operating time(h)	6~8

9.F4-3000A	Specified load(kg)	3000
	Maximum lifting height(mm)	5500
	Minimum channel width(m)	2.9
	Lifting speed (full load/empty load)(mm/s)	110/150
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Forward, backward, arc, rotation
	DimensionsLWH(mm)	237811701983
	Rated operating speed(m/s)	1.5
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤2
	Rated operating time(h)	6~8

3. Handling series

The handling series forklift robots have payloads ranging from 1000kg to 3000kg, and a maximum traveling speed of up to 2m/s. They have a lightweight body design and are equipped with high-capacity batteries. The battery of the appropriate size can be selected according to needs to reduce redundancy for precise needs. The thickness of the car body specially designed for the robot greatly reduces the width of the running channel and increases the material storage space. The entire series adopts the environment contour navigation method, supports texture navigation, makes full use of environmental information for positioning, and facilitates deployment and implementation.

10.F3-1000	Specified load(kg)	1000
	Maximum lifting height(mm)	215
	Minimum channel width(m)	2.5
	Lifting speed (full load/empty load)(mm/s)	25/25
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Forward, backward, arc, rotation
	DimensionsLWH(mm)	22458062040
	Rated operating speed(m/s)	2.5
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤2
	Rated operating time(h)	6~8

11.F3-1500	Specified load(kg)	1500
	Maximum lifting height(mm)	200
	Minimum channel width(m)	2.2
	Lifting speed (full load/empty load)(mm/s)	25/25
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Forward, backward, arc, rotation
	DimensionsLWH(mm)	16458701984
	Rated operating speed(m/s)	1.2
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤2
	Rated operating time(h)	6~8

12.F3-2000	Specified load(kg)	2300
	Maximum lifting height(mm)	200
	Minimum channel width(m)	2.3
	Lifting speed (full load/empty load)(mm/s)	25/25
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Forward, backward, arc, rotation
	DimensionsLWH(mm)	17169501906
	Rated operating speed(m/s)	1.2
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤2
	Rated operating time(h)	6~8

13.F3-3000	Specified load(kg)	3000
	Maximum lifting height(mm)	200
	Minimum channel width(m)	2.2
	Lifting speed (full load/empty load)(mm/s)	30/30
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Forward, backward, arc, rotation
	DimensionsLWH(mm)	17129501985
	Rated operating speed(m/s)	1.6
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤3
	Rated operating time(h)	6~8

4. Forward shift/counterweight series

The forward-moving/counterbalanced series forklift robot adopts an independent body design and is compatible with forward-moving and counterweight module designs. It is mainly used in indoor handling scenarios of Tian-shaped boards, European standard pallets, and small forklift space vehicles. It is widely used Lithium batteries, beverages, home appliances, panels and other industries also reserve a rich set of attachment interfaces to facilitate the customization of non-standard vehicle services, such as distance adjustment, clamping and other scenarios. It is one of the series of products with strong scalability.

14.F5-1600(3m)	Specified load(kg)	1600
	Maximum lifting height(mm)	3000
	Minimum channel width(m)	2.7
	Lifting speed (full load/empty load)(mm/s)	120/150
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Forward, backward, arc, rotation
	DimensionsLWH(mm)	230512002219
	Rated operating speed(m/s)	1.5
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤3
	Rated operating time(h)	6~8

15.F6-2000(3m)	Specified load(kg)	2000
	Maximum lifting height(mm)	3000
	Minimum channel width(m)	3.7
	Lifting speed (full load/empty load)(mm/s)	120/150
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Forward, backward, arc, rotation
	DimensionsLWH(mm)	326012061978
	Rated operating speed(m/s)	1.5
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤2
	Rated operating time(h)	6~8

16.F5-1600(4.5m)	Specified load(kg)	1600
	Maximum lifting height(mm)	4500
	Minimum channel width(m)	2.7
	Lifting speed (full load/empty load)(mm/s)	120/150
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Forward, backward, arc, rotation
	DimensionsLWH(mm)	228712002219
	Rated operating speed(m/s)	1.5
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤3
	Rated operating time(h)	6~8

17.F6-2000(4.5m)	Specified load(kg)	2000
	Maximum lifting height(mm)	4500
	Minimum channel width(m)	3.7
	Lifting speed (full load/empty load)(mm/s)	120/150
	Navigation	3D Navigation/LSLAM/Visual Assistance
	Movement style	Forward, backward, arc, rotation
	DimensionsLWH(mm)	326012061978
	Rated operating speed(m/s)	1.5
	Security configuration	Laser obstacle avoidance + physical collision avoidance
	Positioning accuracy(mm,°)	±10,±1
	Charging time(h)	≤2
	Rated operating time(h)	6~8
