AGV - Automated Guided Vehicle
High performance full protection Lurking AGV
The Latent Mobile robot series moves inventory shelves or pallets to the picking station by its lifting mechanism. It has optimized motion performance and enhanced safety protection, delivering highly productive and cost-effective goods-to-person solutions.
For the turnover in the warehouse or the connection between the production line and the warehouse, the flexible handling AGV is selected to replace the traditional forklift and other handling tools according to the flow demand. Kingmore smart forms information interaction between the handling system, warehouse and production line, which can ensure the traceability of information in the whole link, create intelligent flexible production and reduce the demand for manual use.
1. Lift type
Lifting robot is an automated logistics equipment that can realize autonomous loading, lifting, and transportation. It is characterized by being equipped with a lifting device, which can lift goods from the ground to a higher position to achieve tasks such as handling and storage. Usually used in industrial and warehousing logistics applications, it can effectively improve production efficiency and reduce logistics costs.
|

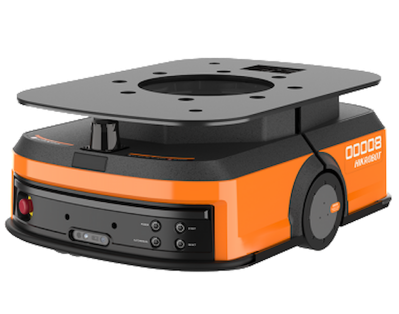

Q2-400D |
Lifting height（mm） | 60 |
| Specified load（kg） | 400 | |
| Navigation | QR code/LSLAM | |
| Gradeability（°） | 3 | |
| Rotation diameter（mm） | 820 | |
| Rated operating time（h） | 8 | |
| DimensionsL*W*H（mm） | 780*545*300 | |
| Rated operating speed (no load)(m/s） | 2.0 | |
| Weight (kg) | 93 | |
| Positioning accuracy(mm,°) | ±10/±1 | |
| Charging time（h） | ≤1.5 | |
| Drive mode | differential drive |
|

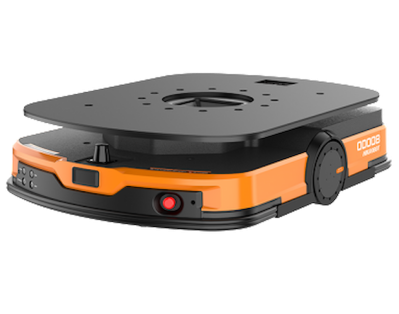

Q3-600D |
Lifting height（mm） | 60 |
| Specified load（kg） | 600 | |
| Navigation | QR code/LSLAM | |
| Gradeability（°） | 3 | |
| Rotation diameter（mm） | 995 | |
| Rated operating time（h） | 8 | |
| DimensionsL*W*H（mm） | 950*650*250 | |
| Rated operating speed (no load)(m/s） | 2.0 | |
| Weight (kg) | 132 | |
| Positioning accuracy(mm,°) | ±10/±1 | |
| Charging time（h） | ≤1.5 | |
| Drive mode | differential drive |
|

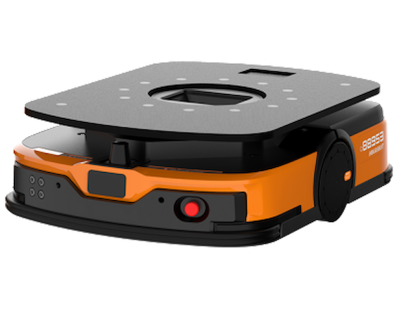

Q7-1000E |
Lifting height（mm） | 60 |
| Specified load（kg） | 1000 | |
| Navigation | QR code/LSLAM | |
| Gradeability（°） | 3 | |
| Rotation diameter（mm） | 1200 | |
| Rated operating time（h） | 8 | |
| DimensionsL*W*H（mm） | 1150*820*254 | |
| Rated operating speed (no load)(m/s） | 2.0 | |
| Weight (kg) | 172 | |
| Positioning accuracy(mm,°) | ±10/±1 | |
| Charging time（h） | ≤1.5 | |
| Drive mode | differential drive |
|

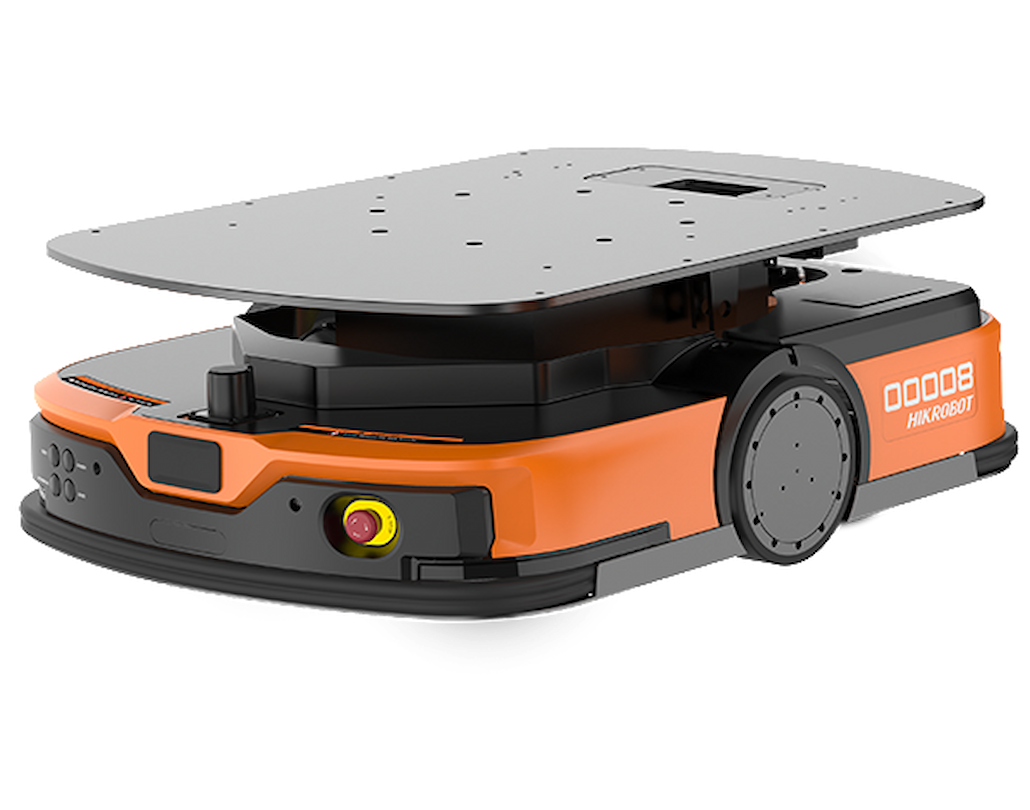

Q8-2000A |
Lifting height（mm） | 100 |
| Specified load（kg） | 2000 | |
| Navigation | QR code/LSLAM | |
| Gradeability（°） | 3 | |
| Rotation diameter（mm） | 1780 | |
| Rated operating time（h） | 8 | |
| DimensionsL*W*H（mm） | 1523*1150*327 | |
| Rated operating speed (no load)(m/s） | 0.9 | |
| Weight (kg) | 550 | |
| Positioning accuracy(mm,°) | ±10/±1 | |
| Charging time（h） | ≤1.5 | |
| Drive mode | differential drive |
2. Chassis type
The latent robot chassis vehicle is a robot platform with upper-layer expansion functions and chassis mobility capabilities. Its characteristic is that the table has its own upper mounting holes, and an integrated interface board is provided for the upper mechanism to obtain hardware interfaces; it can adapt to a variety of upper expansion needs, such as rollers, small robotic arms, inspection cameras, environmental detection equipment, etc., and has rich functions Secondary development and expansion capabilities can be widely used in various industrial, warehousing and logistics, intelligent manufacturing and other scenarios.
|

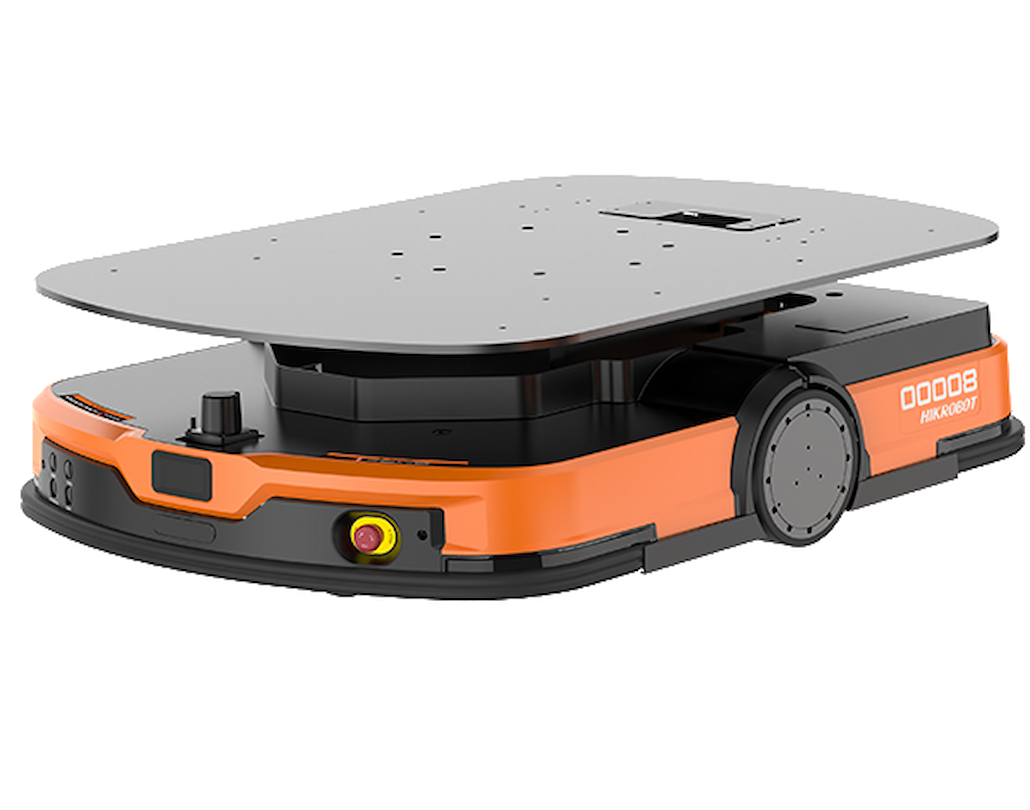

Q3B-600C-D |
Lifting height（mm） | / |
| Specified load（kg） | 600 | |
| Navigation | QR code | |
| Gradeability（°） | 3 | |
| Rotation diameter（mm） | 995 | |
| Rated operating time（h） | 8 | |
| DimensionsL*W*H（mm） | 950*650*300 | |
| Rated operating speed (no load)(m/s） | 2.0 | |
| Weight (kg) | 126 | |
| Positioning accuracy(mm,°) | ±10/±1 | |
| Charging time（h） | ≤1.5 | |
| Drive mode | differential drive |
|
Q3B-600L-D |
Lifting height（mm） | / |
| Specified load（kg） | 600 | |
| Navigation | LSLAM | |
| Gradeability（°） | 3 | |
| Rotation diameter（mm） | 995 | |
| Rated operating time（h） | 8 | |
| DimensionsL*W*H（mm） | 950*650*300 | |
| Rated operating speed (no load)(m/s） | 2.0 | |
| Weight (kg) | 126 | |
| Positioning accuracy(mm,°) | ±10/±1 | |
| Charging time（h） | ≤1.5 | |
| Drive mode | differential drive |
|

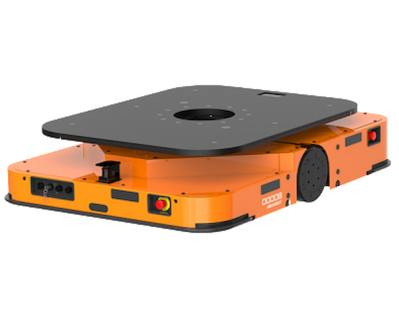

Q7B-1000C-E |
Lifting height（mm） | / |
| Specified load（kg） | 1000 | |
| Navigation | QR code | |
| Gradeability（°） | 3 | |
| Rotation diameter（mm） | 1200 | |
| Rated operating time（h） | 8 | |
| DimensionsL*W*H（mm） | 1150*820*300 | |
| Rated operating speed (no load)(m/s） | 2.0 | |
| Weight (kg) | 184 | |
| Positioning accuracy(mm,°) | ±10/±1 | |
| Charging time（h） | ≤1.5 | |
| Drive mode | differential drive |
|
Q7B-1000L-E |
Lifting height（mm） | / |
| Specified load（kg） | 1000 | |
| Navigation | LSLAM | |
| Gradeability（°） | 3 | |
| Rotation diameter（mm） | 1200 | |
| Rated operating time（h） | 8 | |
| DimensionsL*W*H（mm） | 1150*820*300 | |
| Rated operating speed (no load)(m/s） | 2.0 | |
| Weight (kg) | 184 | |
| Positioning accuracy(mm,°) | ±10/±1 | |
| Charging time（h） | ≤1.5 | |
| Drive mode | differential drive |
